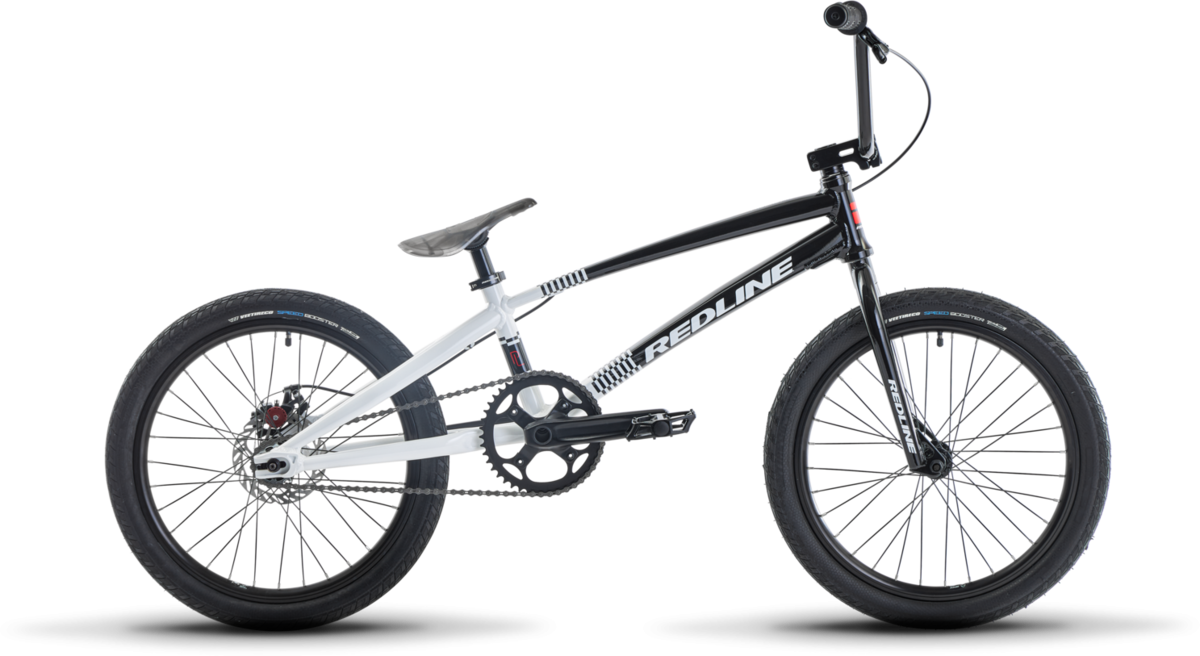

Redline Proline Pro XL
This item is currently not available.
Details
The Proline Pro (XL = 21"TT, Pro = 20.5"TT) is designed for the rider looking to get serious about racing. Proprietary Redline formed 6061-T6 alloy frame, sealed hubs, and a CrMo butted and tapered race fork for performance and value that is at top of the class.
Features:
- 1-1/8" Integrated headset
- Machined Euro Threaded BB shell
- RL Sealed bearing cassette hub and sealed bearing front hub
- RL Alloy 2pc cranks
- RL no-padding Pivotal Seat
- QR seatpost collar
- Alloy rims wrapped in Vee Speed Booster 20 x 1.95" Tires.
| Frame Size | 20" |
|---|---|
| Rider Height | 5'10" - 6'1" |
| Bike Top Tube Length | 21" |
| Bike Head Angle | 74° |
| Bike Chain Stay Length | 14.75" |
| Bike Bb Height | 11.5" |
| Bike Stem Length | 55mm |
| Bike Handlebar Width | 28.25" |
| Bike Crank Length | 180mm |
Specs
| Frame | Proprietary Alloy Formed and Butted Tubing |
|---|---|
| Fork | Full Chromo With Tapered Legs |
| Rims | Alloy Race, 20 x 1.5, 32h |
| Hubs |
Front: Redline Aluminum Fully Sealed Rear: Redline Aluminum, Cassette, Fully Sealed |
| Spokes | Stainless 14g, Black |
| Tires | Vee Speed Booster, F. 20 x 1.95" / R. 20 x 1.95" |
| Bottom Bracket | External Sealed Euro BB |
| Crankset | Proline 2pc Alloy Forged Cranks, 170mm w/24mm Chromo Spindle |
| Cassette/Freewheel | 16T |
| Chain | KMC Z6 |
| Brakes | SRAM BB5 Disc Brake |
| Brake Levers | Promax XL-373 |
| Handlebars | RL Pro Chromo 8" Rise / 10° Back / 4° Up |
| Tape/Grips | RL Pro Hex Grips |
| Stem | RL Aluminum Hollowpoint 55mm |
| Headset | Sealed Integrated Headset 1 1/8, Aluminum top cap |
| Seatpost | Aluminum Pivotal 26.8mm |
| Saddle | Race Pivotal No padding |
| Pedals | RL Aluminum 9/16" Platform |
| Accessories & Extras | Chain Tensioners |
* Subject to change without notice.
